HD TV complete rack system

Analog Transmitters

Analog Pre-Wired Transmitter Sytems

Digital TV Transmitter System

Pre-Wired, Tested and Ready to

“Plug-N-Play”

System I

19” rack enclosure
Single Channel SD Encoder
Technalogix ATSC (8VSB) Digital Power Amplifier with Digital Mask Filter (simple or stringent) and Isolator
TM600-8VSB Agile Digital Modulator c/w linear and nonlinear pre-correction, digital display and monitoring system
Broadcast Tools WVRC4 Remote Control
TM-500, 5.8 Gig, license free Digital Microwave Link
(Includes transmitter, receiver and antenna for both ends)

Price for Complete System shown Above

100 Watt System $40,442.00
200 Watt System $42,095.00
300 Watt System $45,000.00
500 Watt System $57,022.00
1000 Watt System $83,420.00

For additional link options add the following:

10 Mile Link $1,875.00
15 Mile Link $2,250.00
25 Mile Link $2,837.50
30 Mile Link $4,062.50

Other Options:

10 Channel MUX $10,590.00
Extra SD Encoder $5,885.00
To Change From SD to HD $8,235.00

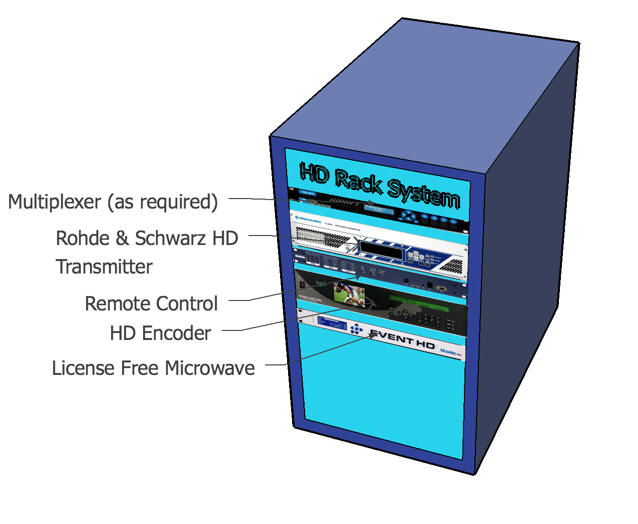

System II

19” rack enclosure
Tiernan HD or SD Encoder
Rohde & Schwarz SLx8000 ATSC (8VSB) Digital Power Amplifier with Digital-Analog Modulator (soft switching) or Rohde & Schwarz NHNV8300 ATSC (8VSB) for higher power
Logic Innovations TSM2800 Multiplexer (if required)
Broadcast Tools WVRC8 Remote Control
Moseley Event HD, 5.8 GHz, license free Digital Microwave Link (Includes transmitter, receiver and antenna for both ends)
